BestConnect MDR Conveyor
BestConnect MDR can be utilized to create systems for a variety of applications including package transfers, semi-automated sorts, and tying in manual packaging/workstations. These solutions can be quickly installed or reconfigured thanks to modular design, minimal components and hardware, and simple controls.
The brushless 24V DC motors found in BestConnect MDR are capable of more starts and stops and feature up to four times longer life than traditional brushed motors. Each modular section of BestConnect MDR is networked with the other sections, allowing greater control and accuracy throughout the system. They may also be added to customer networks for enhanced monitoring and controls.
Are you interested in this product?
We are here to help.
Featured Video
Features
Communication & Power Cables
BestConnect power and communication cables are simple to use. Sections are designed to not require field wiring or fabrication, and have twist and lock electrical connections.
All sections of BestConnect are powered from 30AMP 110VAC power that is then transferred to the motors operating on 90VDC.
Illuminated Start/Stop Touch Button
Has different color lights help quickly identify which sections have been stopped (green / red).

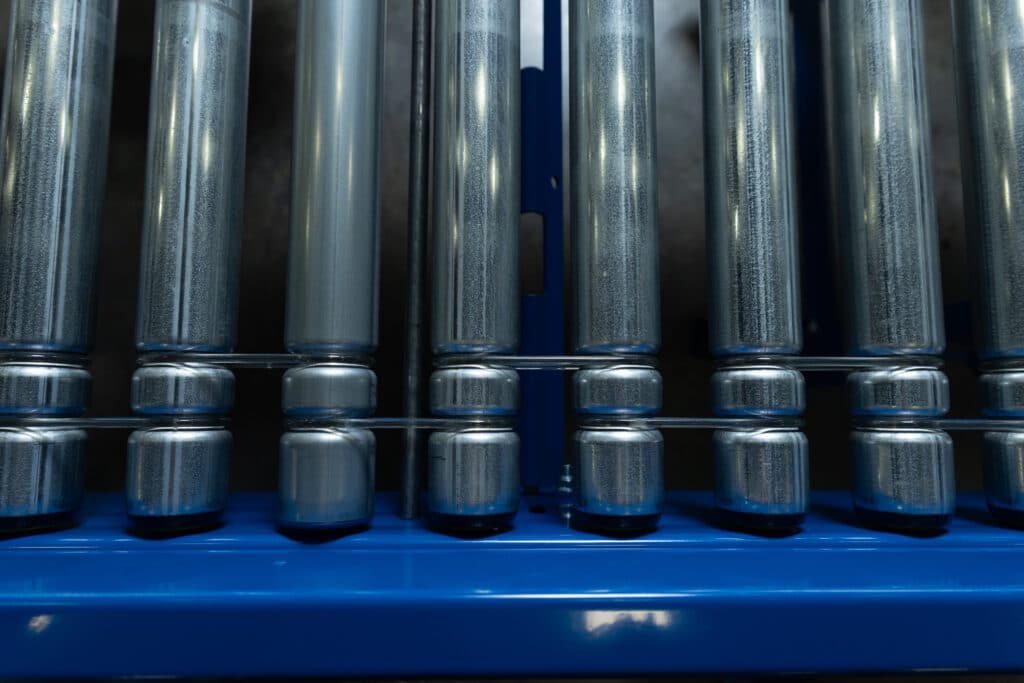

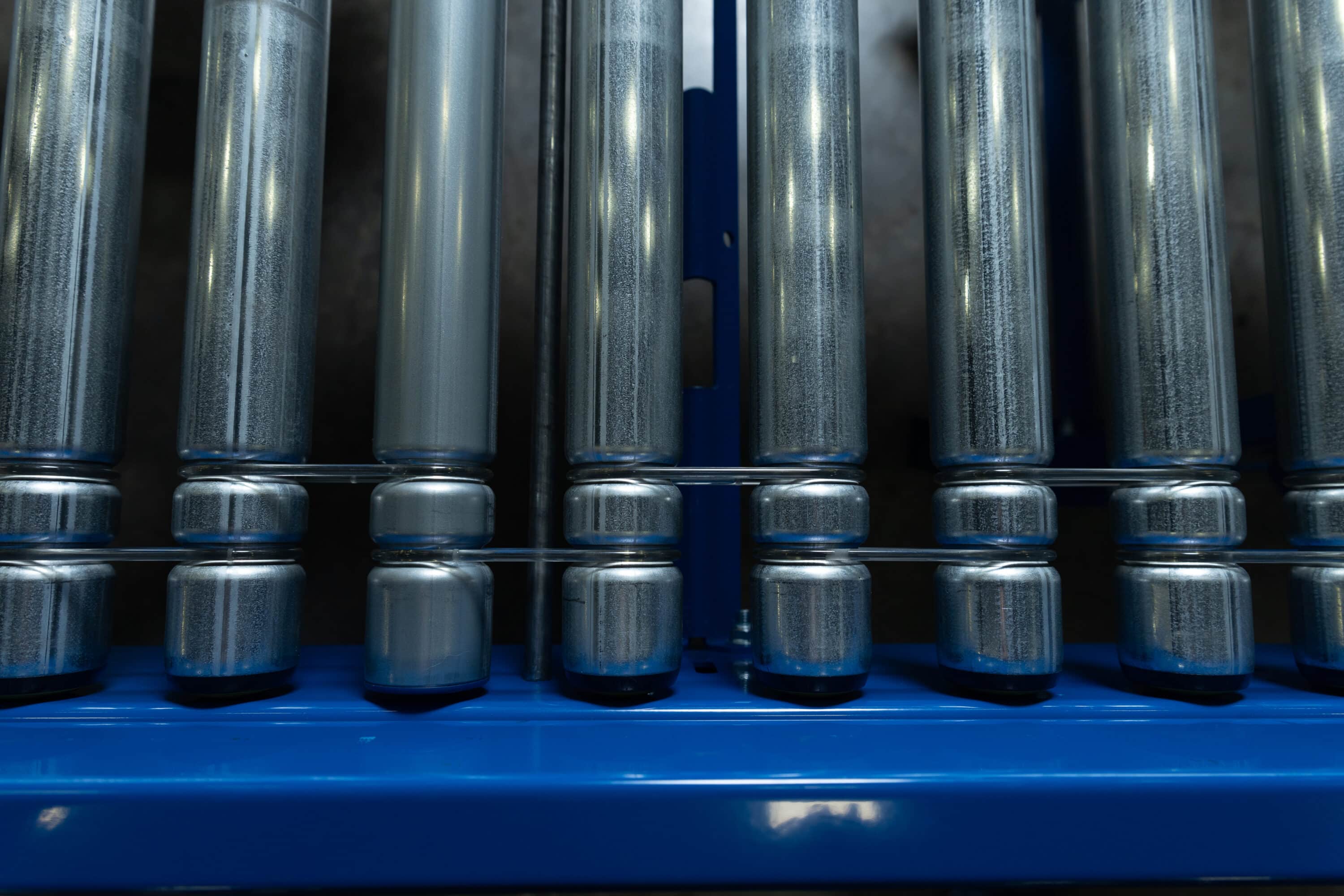

Heavy-Duty Rollers
BestConnect conveyors utilize 1.9″ rollers on 3″ axle centers to convey product.
Heavy-Duty Casters
Heavy duty 6″ x 2″ casters allow for easy movement for system reconfiguration, and the lock brakes help secure the conveyor in place while in use.
Section Types
Section Types
Straights
Straight sections are the primary building block of any system
- Standard Lengths Available:
- 36, 60, 90, 120 in
- Standard Widths Available:
- 24, 30, 36, 48 in
- Accumulation Zones approximately every 33 in
Curves
Curves are used to change the flow direction
- Conical Rollers
- Universal for left hand or right hand applications
Merges
Merges can be utilized to pull index one lane into another.
- Standard Length: 120 in
- Widths Available: 30 / 36 / 48 in
- Merge Angle: 45º
- Foot pedal control, timed control & other options available based on application
Centralizers
Centralizers center packages before and after curves.
- Standard Length: 120 in
- Standard Width: 48 in
Belted Straights
These are comparable to our non-belted straights, with added protection to sensitive products that need to remain level. These belted sections provide more precise separation while accumulating at multiple speeds.
- Standard Lengths Available:
- 36, 60, 90, 120 in
- Standard Widths Available:
- 24, 30, 36, 48 in
- Accumulation Zones approximately every 33 in
Coated Roller Inclines
Coated roller inclines can be used to change elevations within a system.
- Used to change elevation within system
- Standard Length: 120 in
- Widths Available: 36 / 48 in
- Maximum Incline: 9-10º
Standard Specs
Standard Specs
Load Capacity
50 lbs / ft
Roller Size
1.9 in
Roller Type
Heavy duty 16 gauge zinc plated steel rollers with precision bearings
Roller Widths
24 / 30 / 36 / 48 in
Standard Axle Centers
2 in / 3 in
Motors
24v DC Brushless
Motor Speed
Variable 16-194 fpm
Conveyor Heights
Adjustable
Standard Caster
6 x 2 in
Accessories
Accessories
- Cord protection
- Side rails: 3 x 120/144 in
- Stainless Steel Dual-Frame Gap Cover
Warranty
Warranty
ELECTRICAL: 12 Months
MECHANICAL: 24 Months
Services Available
Services Available
- Technical Support
- Installation & Service
- Preventative & Routine Maintenance
- Application Support
- Operator & Maintenance Training
