NestaFlex 376 AL/FL Gravity Skate Wheel Conveyors


The NestaFlex® 376 AL/FL is a heavy duty, gravity conveyor that features double welded cross braces and heavy duty square tubing legs available in adjustable height legs (AL) and fixed height legs (FL). This all bolted design uses shoulder bolts, steel lock nuts and is additionally secured with industrial thread lock to help reduce maintenance. The four point leg connection gives additional strength to the conveyor to make it last longer. The NestaFlex® 376 AL/FL is designed to provide the support necessary to handle heavy packages in high volume environments.

The NestaFlex® 376 AL/FL has a proven track record in the industry and is the choice for medium to high volume shipping and receiving departments in distribution centers, retail stores, and manufacturing and assembly operations.

Are you interested in this product?
We are here to help.

Contact Us

Features

226 flexibility

Flexibility

NestaFlex conveyors are able to bend and twist as needed to go around obstacles. Conveyors can even curve up to 90º and 180º curves.

The flexibility of NestaFlex conveyors also allows a single conveyor to service multiple doors.


flexible conveyor curvature

Self Tracking

Cartons will follow the twists and turns of the conveyor path without using engineered curves.


expanded vs contracted flexible conveyor

Expandability

NestaFlex conveyors are designed to expand and contract as needed to help with the loading and unloading process. Once trucks are loaded or unloaded, conveyors can be conveniently contracted and stored to save floor space.

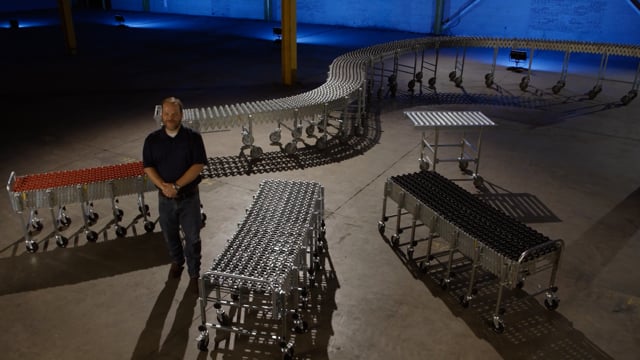

All NestaFlex Skate Wheel Types

Skate Wheels

NestaFlex 376 come standard with zinc plated skate wheels with steel ball bearings. The zinc plated skate wheels provide maximum durability which make them ideal for shipping and receiving applications.

Black polymer skate wheels are also available. They increase the speed of package conveyance, making these excellent for packaging machines and light parcel applications. While the red skate wheels with nylon bushings provide the most economical option.


connection couplers for conveyors

Connection Couplers

Connection couplers allow easy connection between multiple conveyor sections for continuous package flow. This allows for conveyors to be disconnected when retracting or storing.


conveyor axle centers

Axle Centers

Axle centers are measured from centerline to centerline of skate wheels, and ensure that materials remain securely on the conveyor while maintaining efficient flow. Proper axle centers are determined by the smallest item that will be conveyed. The industry standard is three rollers (rows of skate wheels) should be under a carton at all times.


Other Features

conveyor casters with brakes

Heavy Duty Casters

Conveyor casters with brakes help make it easier to roll over uneven surfaces.


ergonomic side handles

Side Handles

Ergonomically designed side handles provide a safe grabbing point for operators to open and close conveyors.


welded double horizontal leg braces

Leg Braces

Welded double horizontal leg braces ensure lasting durability for longer service life.


Standard Specs

Load Capacity

376 lbs / ft

Standard Skate Wheel Type

Zinc Plated

Other Skate Wheel Type/s Available

Black Polymer & Red Polymer

Standard Axle Centers

5.25 in

Other Axle Centers Available

3 & 4 in

Axle Shaft Size

5/16 in

Conveyor Widths

18 / 24 / 30 / 36 in

Conveyor Lengths

8 – 60 ft

Conveyor Heights

20 – 53 in

Standard Caster Size

5 x 1.5 in – up to 40 ft
6 x 2 in – over 40 ft

Other Caster Sizes Available

6 x 2 in / 8 x 2 in

Side Link Construction

7 gauge steel

Frame Design

All steel construction

Leg Design

Zinc plated w/ welded double horizontal leg braces

Accessories

  • Curve Guards
  • Swing Stick
  • T-Junctions
  • Side Handles
  • Heavy Duty Impact Cart

Warranty

MECHANICAL :: 24 Months

Services Available

  • Technical Support
  • Installation & Service
  • Prevenative & Routine Maintenance
  • Application Support
  • Operator & Maintenance Training
