BestFlex Roller


The BestFlex Roller is excellent for handling odd-shaped boxes, bags and low-grade cartons in low to medium volume applications. Designed to expand, contract and move easily, the BestFlex Roller is a self-tracking, gravity roller conveyor that has a per linear foot capacity of 220Kg per linear metre. The all-steel frame construction provides unmatched structural integrity, whether the conveyor is extended, contracted or configured in simple or compound curves.

It is the best choice for moving items without a flat, solid surface.

Are you interested in this product?
We are here to help.

Contact Us

Features

Self-Tracking

Cartons follow the path of the conveyor without using engineered curves.


Adjustable Height

Telescopic leg sections are used to raise or lower the conveyor height.


Square Tubing Legs

Heavy-duty square tubing legs offer longer service life and stability.


40mm Side Plate

Aluminium alloy construction features a ribbed design for added strength. Assembled with bolts and locking nuts.


Castors with Brakes

127mm x 38mm Swivel Castors allow easy movement. Castor brakes lock both wheels and swivel simultaneously while the conveyor is in use.


Performance Options

Package Stop

Stops cartons at the end of the conveyor and can be dropped down when not needed.

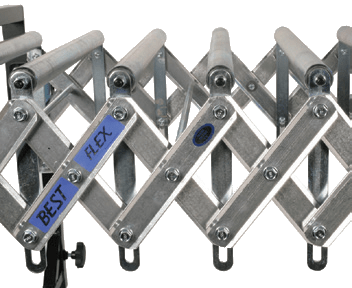

Axle Centres

In addition to the standard Axle Centre of 127mm, options of 102mm and 76mm are available on request to handle smaller packages.


Heavy-Duty Castors

150mm x 50mm Swivel Castors for easier rolling over uneven surfaces. (Adds 23mm to the conveyor height).


Side Guides

Prevents cartons from running off the edges of the conveyor.


Roller Stop/Connector

Provides a simple mechanical connection between conveyor sections to allow longer lines to be built. This also acts as a drop-down package stop at the end of lines.


Perpendicular Legs

Keeps legs vertical in both the expanded and compacted positions for easier mobility and added strength.


Standard Specs

Load Capacity

220Kg capacity per linear metre (level.)

Roller Size

40mm

Standard Axle Centers

127mm

Conveyor Widths

18 inch – 450mm

24 inch – 600mm

30 inch – 750mm

36 inch – 900mm

(More Available Upon Request)

Conveyor Lengths

From 8ft (2.5m) to 64ft (19.6m)

Standard Castor Size

127mm x 38mm

Warranty

24 Months

Services Available

  • Technical Support
  • Installation & Service
  • Preventive & Routine Maintenance
  • Application Support
  • Operator & Maintenance Training
